BIM Modeling for Memorial Hospital
Project Details
- Country: USA
- Disciplines: Architecture, Structure, MEP
- Software Used: Revit
- Floors: 14 Floors + Roof
- Type of Project: Scan to BIM
- Area of the building overall: 306,230 sq. ft.
- Units of measurement: Imperial
-
LOD 350 Architectural, Structural and MEP Model:
Large Scale Hospital
We're exhilarated to announce our newest project– one of the ground breaking Point cloud-to-BIM Model we completed recently in the United States of America.
Execution of the project was a challenge in itself owing to a short turnaround time and phase wise input delivery from the client with ongoing design changes. It took us close to 4 weeks to complete this massive hospital with LOD 350 Model with interiors, façade and sheets.
"We were impressed with the deliverables and the ability to withstand deadline pressure. Would want to work with them again."
- Hongjia

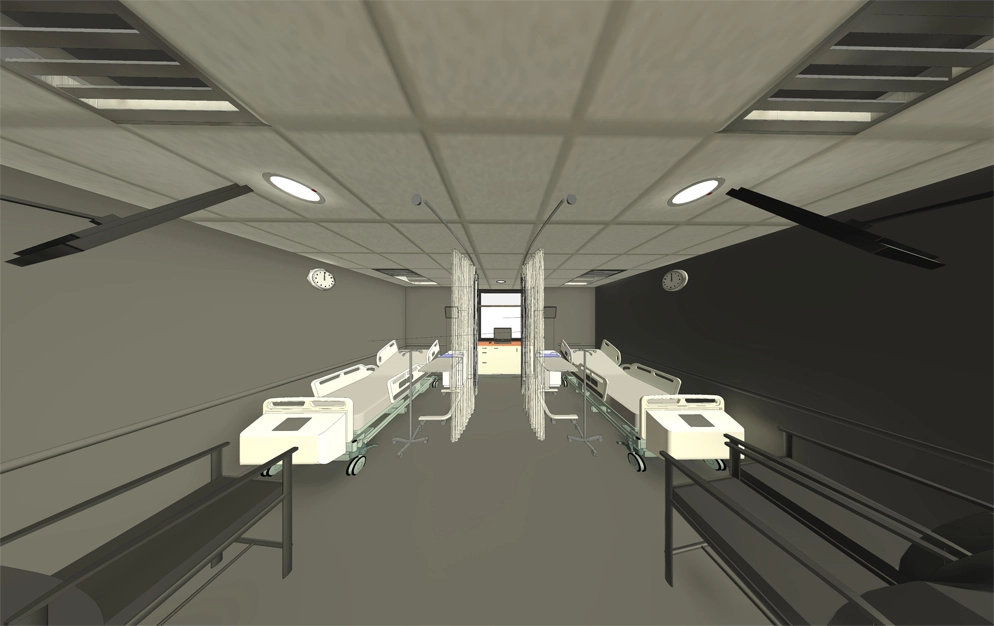

Patient examination Area
Office Area
Model Contents
Interior and Exterior Elements, Furniture systems and Millwork, Large Hospital and Lab equipment’s, Movable and Fixed Furniture, ceilings, Façade, Structural Elements, Building Vertical cores, MEP Fixtures, RCP
Accuracy Assurance
- Tolerance Standards: Maintained throughout the entire model
- Level of Accuracy between point cloud and Revit model:+-15mm
- Level of accuracy 1” from scan (i.e. the walls and floors having undulations in scan of up to 1” will be modelled orthogonal/straight).
Hospital room
Structural Model
0 +
Years of Experience
0 +
Successful Projects
0 +
Countries Served
0 +
Happy Clients
Project Gallery
