Revit Family Creation for Furniture Products
We created parametric Revit Families for 51 different furniture products for our client in Australia. Most of the products were modeled from scratch while a few of them were basic families and had to be modified in Revit. Parameters were added to all these families and the project was completed in 10 working days.
Overview of the Project
We developed Revit families for 51 distinct furniture designs, capturing significant variations in shape, size, curvature, and edge profiles. We paid special attention to detailing variations in component depth, cushioning contours, and upholstery depression. Each family was individually tailored, ensuring a unique and nuanced design approach from structural form to textural refinement.
Project Highpoints
Project Information
Scope: Parametric Revit Family Creation of 51 furniture products received in STEP version.
- Modeling of 39 product families in Revit from scratch.
- Completing 12 products files received in Revit.
- Adding parameters from the excel file received to all 51 files.
- Reference of material library to be taken from ‘Cult-Sia-Stool’ file received.
Project Deliverables
- RFA files for 51 Revit families

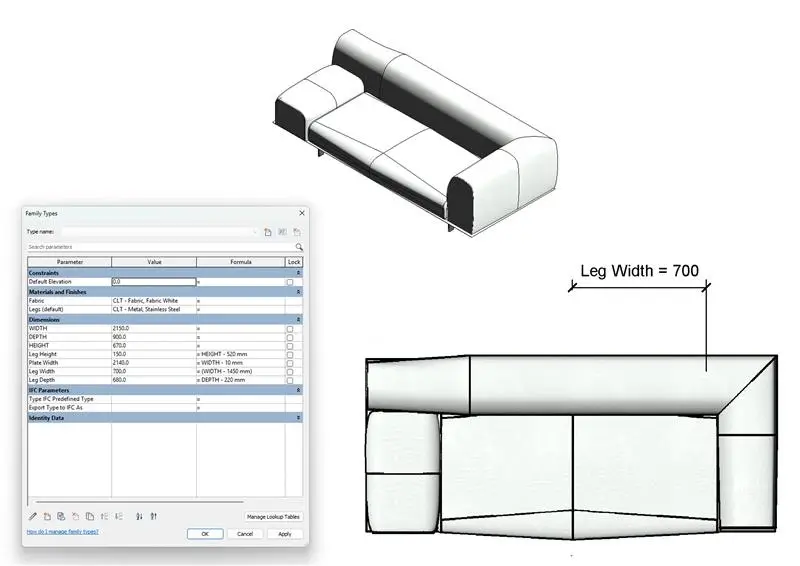

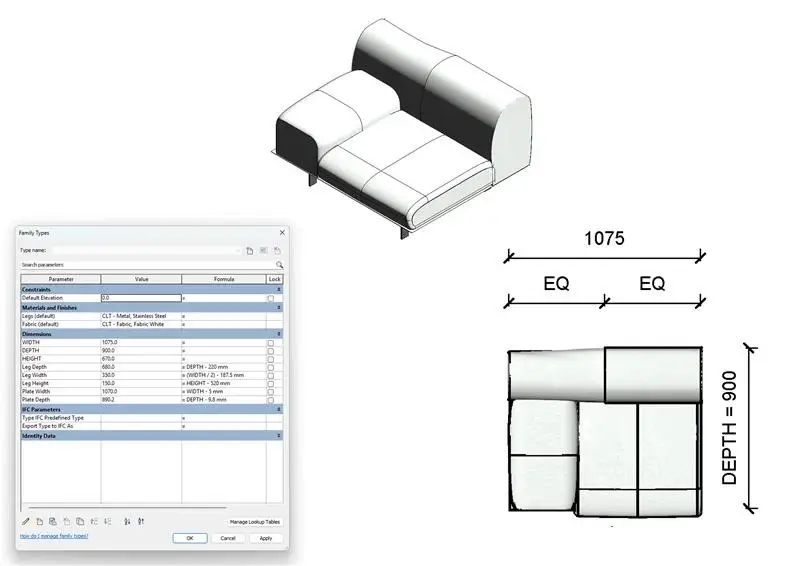

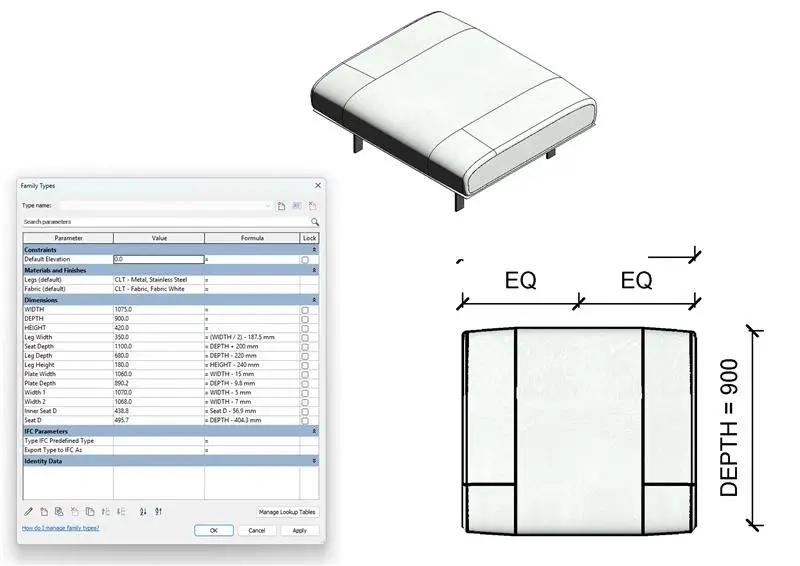

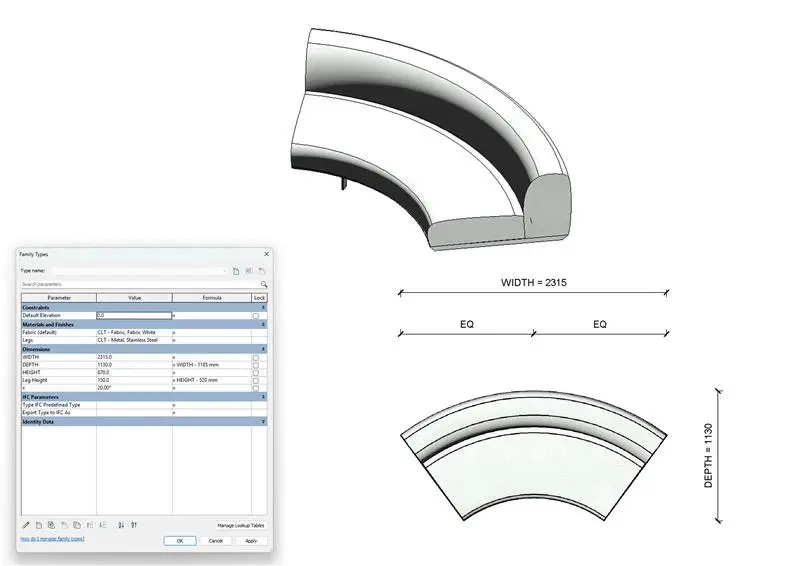

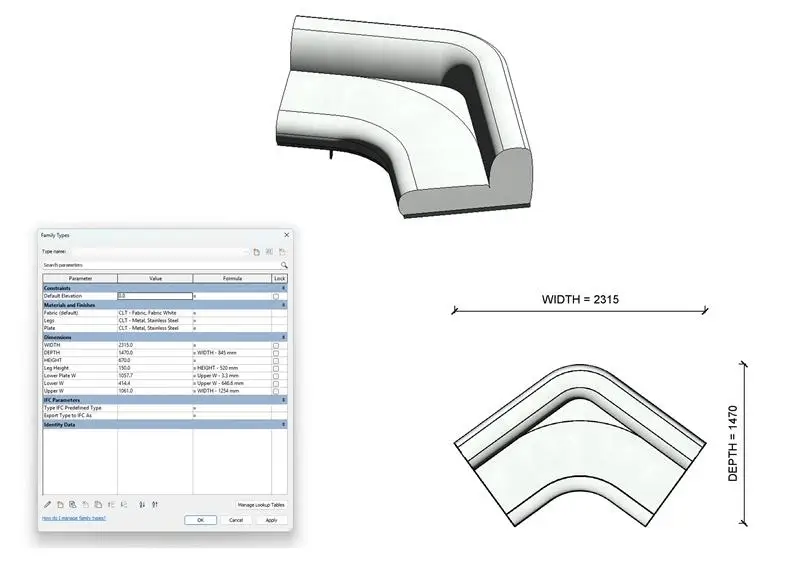

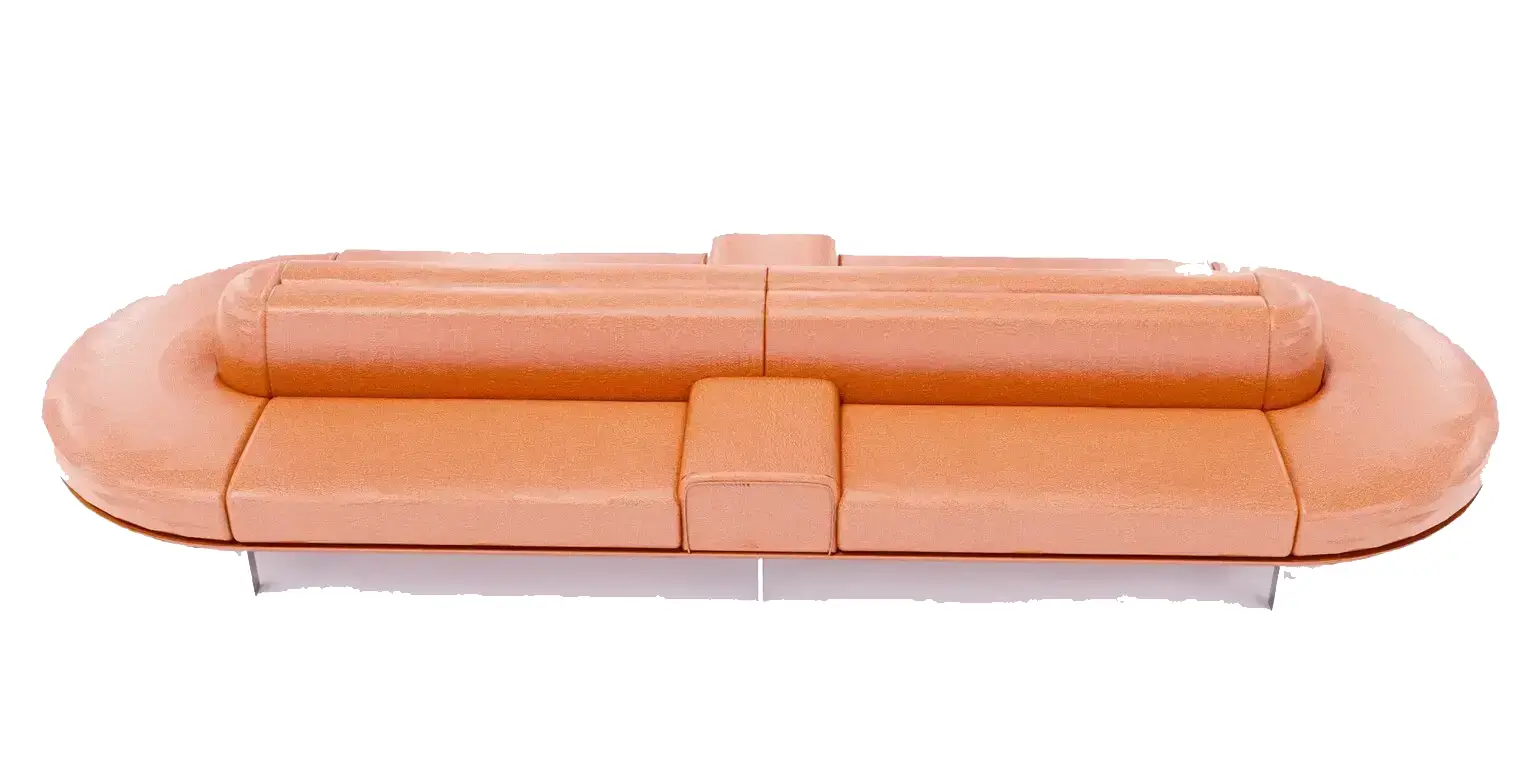

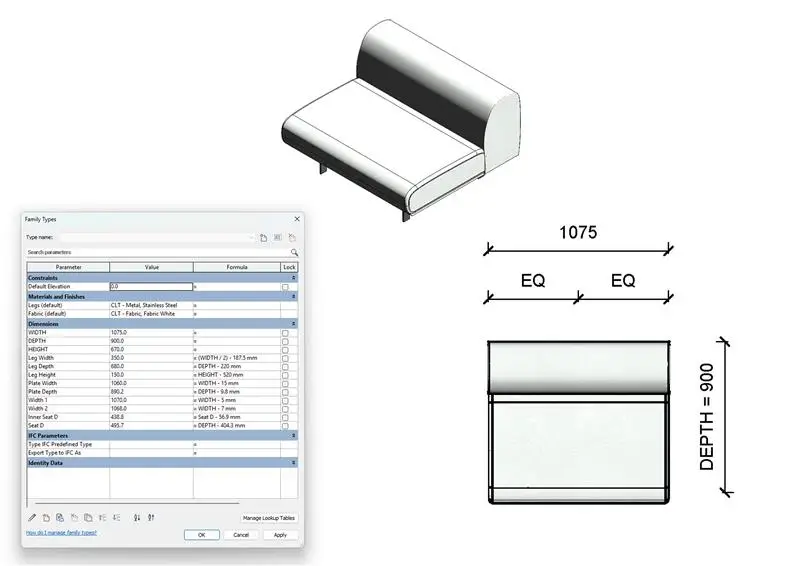

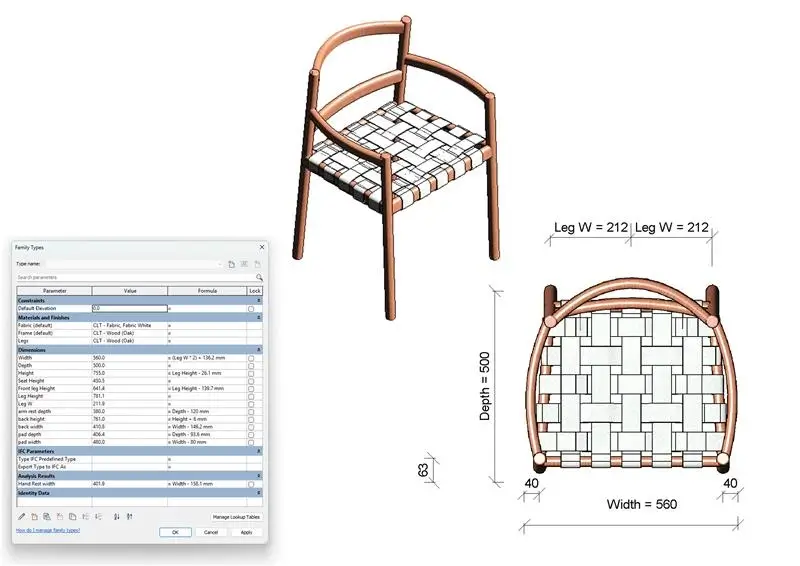

Project Gallery
